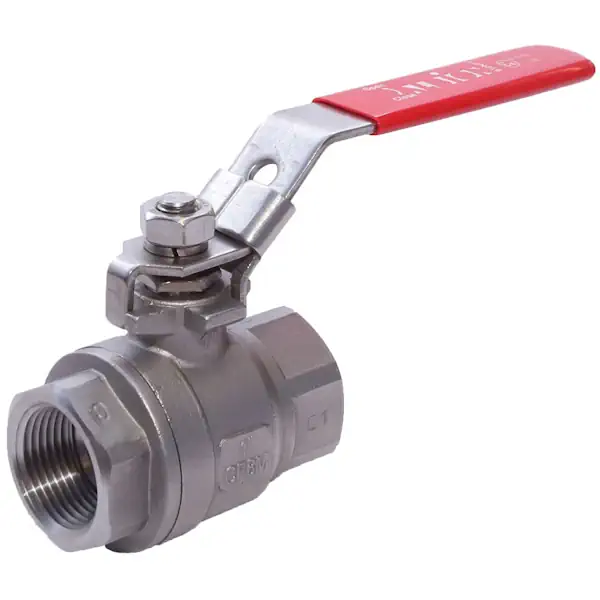

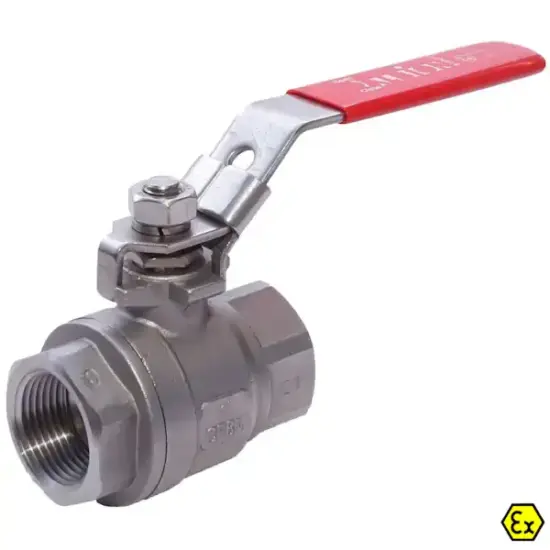

Albion Art912 NPT Threaded stainless steel 316 full bore 2-piece ball valve with locking lever and ATEX approval. PN140 rated.

Albion Art912 NPT Threaded Stainless Steel 2-Piece Ball Valve (PN140)

Brand: Albion Valves
SKU: 31ART912NPT

£10.65 – £83.10 ex. VAT

About this product

Albion Art912 NPT Threaded Stainless Steel Full Bore Ball Valve

The ART 912 NPT is a high-performance 2-piece full bore ball valve with a stainless steel 316 body and a reinforced PTFE seat. It features female NPT taper threaded ends conforming to ASME/ANSI B1.20.1 and includes a manual locking lever as standard. ATEX approved, it operates within a temperature range of -25°C to 200°C and is rated for pressures up to 140 bar

Key Features:

  • Stainless steel 316 body, ball, and stem
  • Female NPT taper threaded ends (ANSI/ASME B1.20.1)
  • Reinforced PTFE seat, PTFE stem packing & washers
  • ATEX approved, locking lever included
  • 140 bar pressure rated (Up to 35°C)
  • -25°C – 200°C Operating temperature range
Datasheet download

Specification

Weight N/A
Dimensions N/A
Brand

Valve Type

2-Piece Full Bore Ball Valve
Connections

Female NPT Taper Threaded – ASME/ANSI B1.20.1
Operation

Manual Locking Lever/Handle Operated
Body Material

Stainless Steel 316 (CF8M)
Ball Material

Stainless Steel 316
Stem Material

Stainless Steel 316
Body Gasket Material

PTFE
Ball Seat Material

PTFE + 15% Graphite
Stem Packing Material

PTFE
Maximum Operating Pressure

140 bar (up to 35°C)
Operating Temperature Range

-25°C – 200°C
Approvals

ATEX Approved
Certification Availability

N/A
