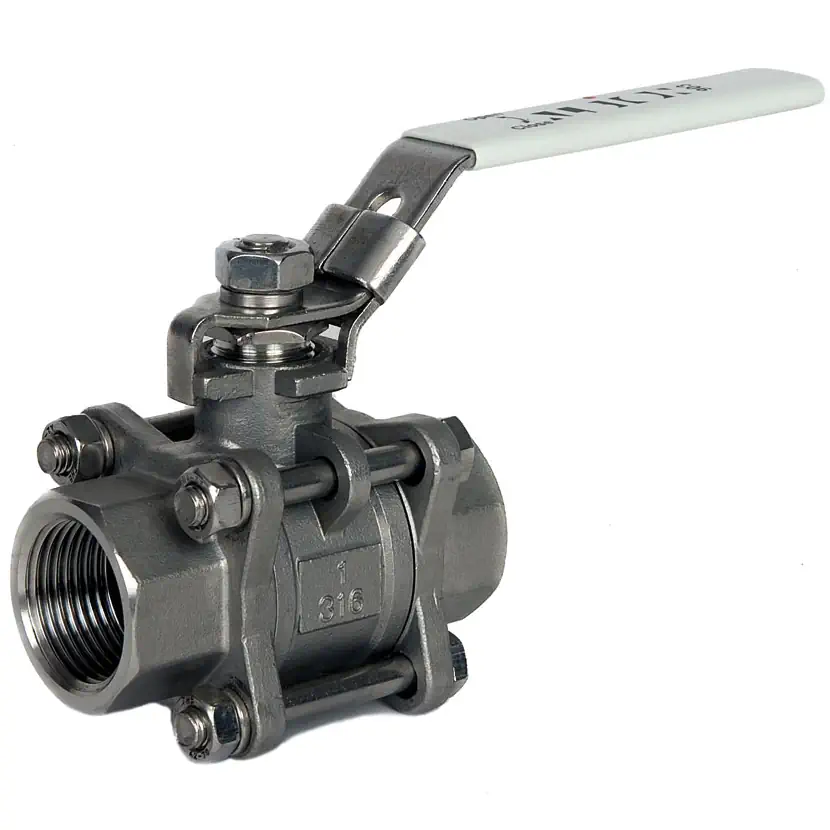

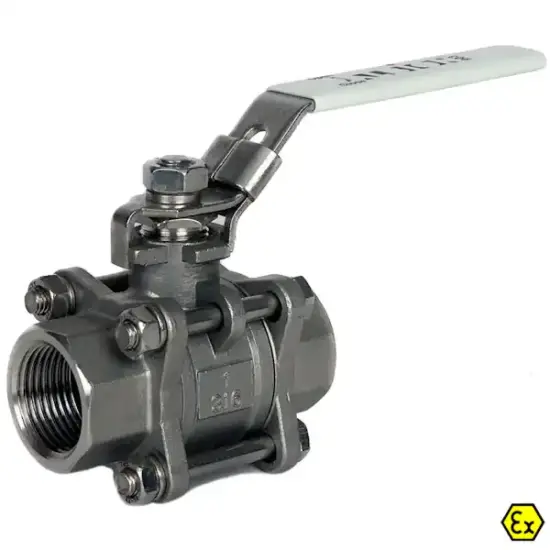

Albion Art903 Full Bore Stainless Steel 3-Piece Ball Valve

Albion Art903 Full Bore Stainless Steel 316 3-Piece Ball Valve

The ART 903 is a high-performance 3-piece full bore ball valve with a stainless steel 316 body and a reinforced PTFE seat. It features female BSP parallel threaded ends conforming to ISO 7/1 and includes a manual locking lever as standard. ATEX approved, it operates within a temperature range of -25°C to 200°C. Pressure ratings vary by size, with up to 82 bar at 40°C for smaller sizes.

Key Features:

• Stainless steel 316 body, ball, and stem
• Female BSP parallel threaded ends (ISO 7/1)
• Reinforced PTFE seat, PTFE stem packing & washers
• ATEX approved, locking lever included
• Sizes 1/4″ – 1″: 82 bar rated at 40°C
• Sizes 1 1/4″ – 1 1/2″: 69 bar rated at 30°C
• Sizes 2″ – 4″: 62 bar rated at 20°C
• -25°C – 200°C Operating temperature range
