Albion Art902NPT Full bore 2-piece stainless steel 316 ball valve with NPT female threaded ends. WRAS and ATEX approved.

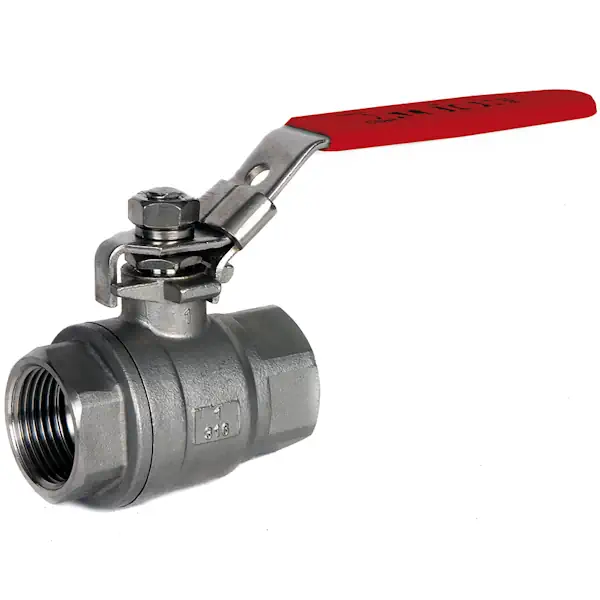

Albion Art902NPT Full Bore 2-Piece Stainless Steel 316 Ball Valve (NPT Threaded)

Brand: Albion Valves
SKU: 31ART902NPT

£8.03 – £63.17 ex. VAT

About this product

Albion Art902NPT Stainless Steel Full Bore Ball Valve

The ART 902NPT is a high-performance 2-piece full bore ball valve with a stainless steel 316 body and a reinforced PTFE seat. It features female BSP parallel threaded ends conforming to ISO 7/1 and includes a manual locking lever as standard. WRAS and ATEX approved, it operates within a temperature range of -25°C to 200°C. Pressure ratings vary by size, with up to 82 bar at 40°C for smaller sizes.

Key Features:

  • Stainless steel 316 body, ball, and stem
  • Female NPT taper threaded ends (ANSI/ASME B1.20.1)
  • Reinforced PTFE seat, PTFE stem packing & washers
  • WRAS and ATEX approved, locking lever included
  • Sizes 1/4″ – 1″: 82 bar rated at 40°C
  • Sizes 1 1/4″ – 1 1/2″: 69 bar rated at 30°C
  • Size 2″: 62 bar rated at 20°C
  • -25°C – 200°C Operating temperature range
Datasheet download

Specification

Weight N/A
Dimensions N/A
Brand

Valve Type

2-Piece Full Bore Ball Valve
Connections

Female NPT Taper Threaded – ASME/ANSI B1.20.1
Operation

Manual Lever/Handle Operated
Body Material

Stainless Steel 316 (CF8M)
Ball Material

Stainless Steel 316
Stem Material

Stainless Steel 316
Body Gasket Material

PTFE
Ball Seat Material

PTFE + 15% Graphite
Stem Packing Material

PTFE
Maximum Operating Pressure

82 bar (1/4" – 1"), 69 bar (1 1/4" – 1 1/2"), 62 bar (2")
Operating Temperature Range

-25°C – 200°C
Approvals

WRAS approved (Potable water). ATEX Approved
Additional Information

Blue handle locking lever included as standard.
Certification Availability

N/A
