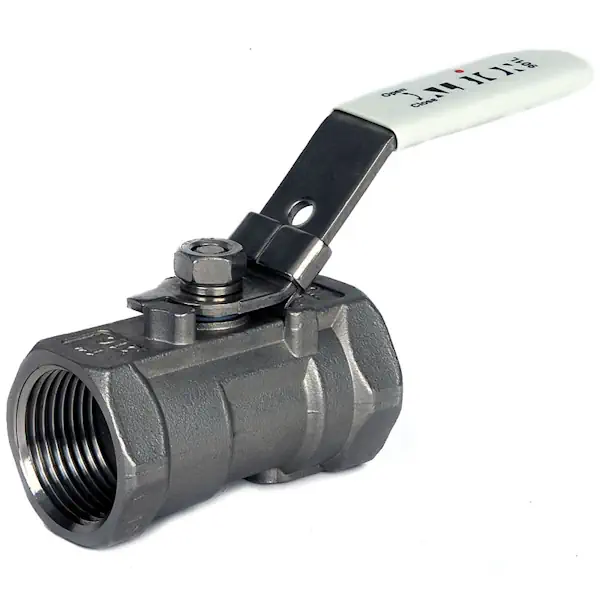

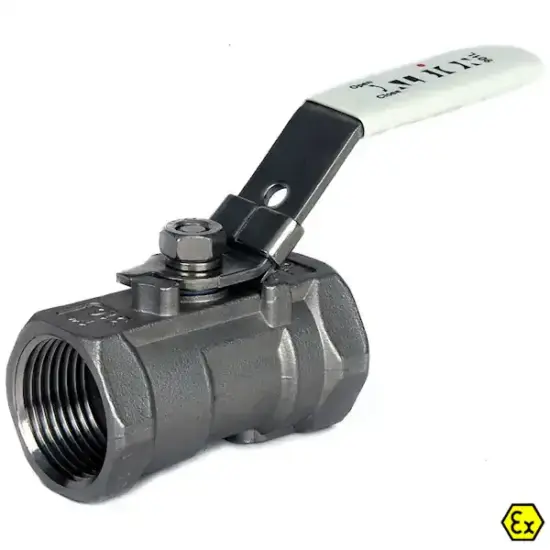

Albion Art901L Stainless Steel 1 Piece Ball Valve (PN69)

Albion Art901L 1-Piece Stainless Steel Ball Valve

The Albion Art901L is a compact, full bore stainless steel ball valve designed for high-performance flow control in industrial systems. This 1-piece (monoblock) valve features a CF8M stainless steel body and internal cap, sealed with a PTFE gasket for long-lasting durability and chemical resistance.

Equipped with a stainless steel 316 ball and reinforced PTFE seats (15% graphite), the Art901L ensures reliable sealing and smooth operation across a wide range of applications. It includes BSPT taper threaded ends to ISO 7/1 and a locking lever handle for manual control. ATEX approved, this valve is suitable for use in potentially explosive environments.

Key Features:

• 1-piece CF8M stainless steel body and internal cap
• Stainless steel 316 ball with reinforced PTFE seats (15% graphite)
• Stainless steel 316 stem with PTFE packing
• Female BSPT taper threaded ends to ISO 7/1
• ATEX approved for use in hazardous areas
• Manual locking lever operation
• Pressure rated to 69 bar (1/4″ – 1 1/4″), 55 bar (1 1/2″ – 2″) at up to 35°C
• Operating temperature range: -25°C to 200°C

Ideal for use in water, steam, oil, gas, and chemical systems where robust, compact valve solutions are required.
