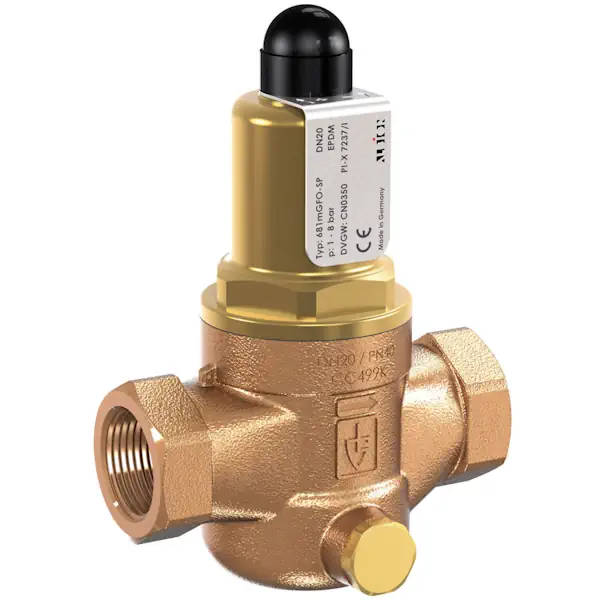

Albion Art681F Gunmetal Pressure Reducing Valve (PN40)

Albion Art681F Gunmetal Pressure Reducing Valve (WRAS Approved)

The Albion Art681F is a robust, WRAS-approved pressure reducing valve designed for potable water applications. Manufactured from durable gunmetal (bronze CC499K), this valve features female BSPP threaded ends and is equipped with corrosion-resistant internal components for long-term reliability in demanding environments.

Key internal parts are constructed from gunmetal and stainless steel 316, with a spring made from rust-protected spring steel to BS EN 10270-1 (grade 1.1200). It includes an integrated stainless steel strainer and EPDM seals for WRAS compliance. The Art681F is PED 2014/68/EU certified and carries multiple marine approvals including GL, LR, EMEA, BV, ABS, and RS. Outlet pressure is adjustable from 1 to 8 bar (pre-set to 3 bar), withstanding inlet pressures up to 40 bar and operating temperatures from -10°C to 95°C.

Key Features:

• Gunmetal (bronze CC499K) body and internal components
• Female BSPP parallel threaded ends
• Stainless steel 316 internals and built-in stainless steel strainer
• Spring steel to BS EN 10270-1 with anti-rust protection (1.1200 grade)
• WRAS approved for use with potable water (EPDM seals)
• Certified to PED 2014/68/EU and tested to BS EN 1267 & ISO 3822
• Marine approvals: GL, LR, EMEA, BV, ABS, RS
• Max inlet pressure: 40 bar, outlet pressure adjustable 1?8 bar (set to 3 bar)
• Operating temperature range: -10°C to 95°C
• 2-year manufacturer?s guarantee

Ideal for use in potable water systems, marine applications, and industrial environments requiring certified and highly durable pressure control.
