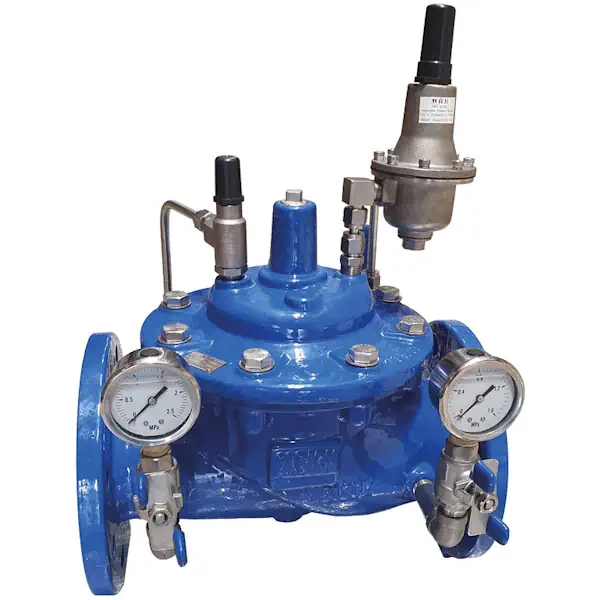

Albion Art6200 PN16 Automatic Pressure Reducing Valve
The Albion Art6200 is a high-performance automatic pressure reducing valve designed for precise downstream pressure regulation in potable water systems. Supplied complete with the Albion Art6250 pilot valve, it enables accurate pressure adjustment, even in fluctuating supply conditions, while maintaining reliable flow and system protection.
Constructed with an epoxy-coated ductile iron body and EPDM body gasket, the Art6200 features flanged PN16 ends to BS EN 1092-1 and face-to-face dimensions to BS EN 558-1 Series 1. The internals include a stainless steel 304 stem and seat with NBR seals, supported by stainless steel 304 pilot tubes, strainers, pressure gauges, and isolation valves. Fully WRAS approved, this valve is rated to 16 bar and operates in temperatures from 0°C to 80°C.
Key Features:
- Automatic pressure reducing valve with Albion Art6250 pilot valve
- Epoxy-coated ductile iron body with EPDM body gasket
- PN16 flanged ends to BS EN 1092-1
- Face-to-face dimensions to BS EN 558-1 Series 1
- Stainless steel 304 seat, stem, pilot tubes, and accessories
- NBR seals for reliable performance
- Built-in with strainer, pressure gauges, isolation valves, and pilot tubing
- WRAS approved for use with potable water
- Pressure rated to 16 bar
- Operating temperature range: 0°C to 80°C
Ideal for controlling downstream pressure in water distribution networks, commercial plumbing systems, and industrial applications where dependable performance and compliance with drinking water regulations are essential.
