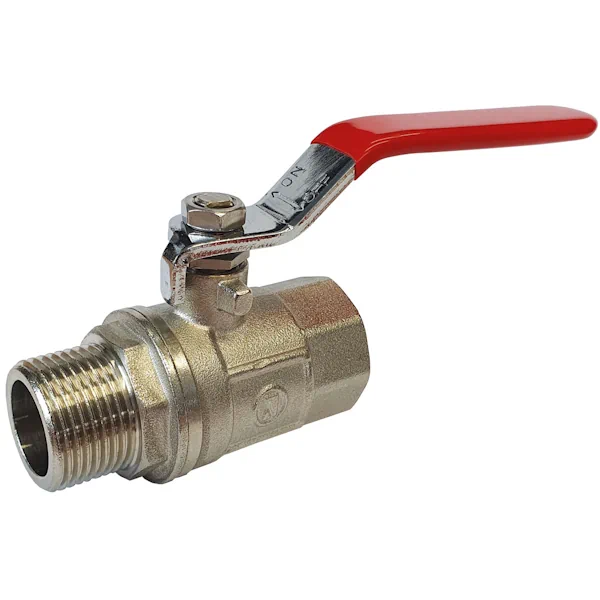

Albion Art41 Full Bore Brass Ball Valve (Male/Female)

Albion Art41 Brass Full Bore Ball Valve

The Albion Art41 is a full bore, two-piece brass ball valve designed for reliable shut-off in potable water and general-purpose systems. Constructed from CW617N brass, it features male x female BSPP threaded ends to ISO 228/1, allowing for versatile installation in a range of pipeline setups.

Internally, the valve includes PTFE ball seats for smooth operation and sealing, a brass Hpb59 anti blow-out stem with PTFE packing, and an NBR O-ring. It is manually operated via a lever handle, with optional locking levers, tee handles, and thermal expansion variants available. The Art41 is WRAS approved for potable water use, rated to 40 bar at up to 100°C, and operates across a temperature range of -20°C to 140°C.

Key Features:

• Full bore design with 2-piece CW617N brass body
• Male x female BSPP threaded ends to ISO 228/1
• PTFE ball seats for smooth sealing
• Anti blow-out Hpb59 brass stem with PTFE packing and NBR O-ring
• Manual lever operation (other handle types available)
• WRAS approved for use with potable water
• Pressure rated to 40 bar (at up to 100°C)
• Operating temperature range: -20°C to 140°C
• Available in sizes 1/4″ – 2″ NB

Ideal for commercial and industrial applications requiring high-pressure, WRAS-approved ball valves with flexible installation and operation options.
