Albion Art375LS Full Bore Bronze Gate Valve (Lockshield)

Brand: Albion Valves
SKU: 31ART375LS

£20.01£91.78 ex. VAT

About this product

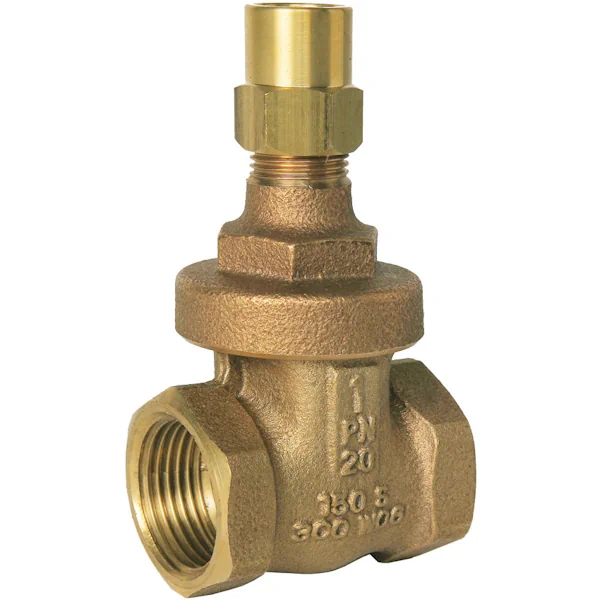

Albion Art375LS Full Bore Bronze Gate Valve with Lockshield

This bronze-bodied gate valve features a threaded bonnet and gate, with female BSPT taper threaded ends to ISO 7-1. Designed for durability and reliability, it includes a brass stem with PTFE stem packing for secure sealing performance.

The lockshield design offers tamper-resistant isolation, making it ideal for controlled environments or where unauthorised adjustment must be prevented. Suitable for use with saturated steam and approved by WRAS for potable water applications.

Key Features:

  • Full bore bronze gate valve with threaded bonnet and disc
  • Female BSPT ends to ISO 7-1 standard
  • Brass stem with PTFE stem packing
  • WRAS approved for drinking water
  • BS EN 12288:2010 compliant (formerly BS 5154)
  • Suitable for use with saturated steam
  • Lockshield design for tamper-resistant control
  • Maximum operating pressure: 20 bar (PN20) up to 70°C
  • Operating temperature range: -10°C to 232°C

Specification

Weight N/A
Dimensions N/A
Brand

Valve Type

Full Bore Gate Valve

Connections

Female BSPT Taper Threads – ISO 7-1, BS EN 10226-1

Manufacturing Standard

Conforms to BS EN 12288 (Previously BS 5154) & MSS-SP-80

Operation

Lockshield

Body Material

Bronze (ASTM B62)

Wedge Material

Bronze (ASTM B62)

Stem Material

Brass (ASTM B16)

Stem Packing Material

PTFE

Maximum Operating Pressure

20 bar

Operating Temperature Range

-10°C – 232°C

Approvals

WRAS Approved (Potable water).

Additional Information

Suitable for saturated steam. Threaded bonnet.

Certification Availability

2.1 Letter of Conformity Only – Must be requested at time of order
