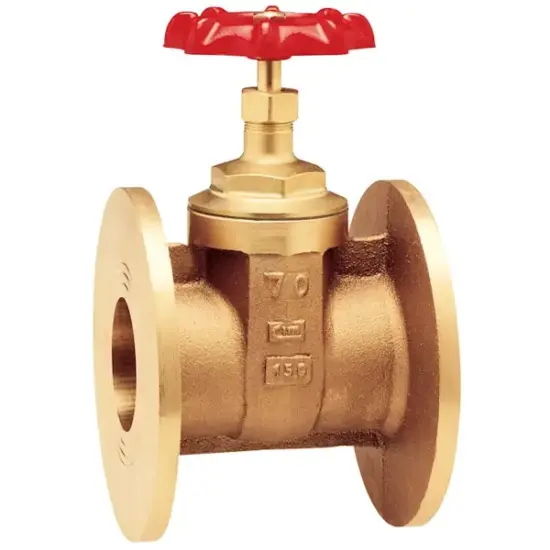

Albion Art335 Full bore bronze gate valve with PN16 flanged ends. CE Marked, up to 16 bar rated. Sizes DN15 - DN150.

Albion Art335 Bronze Full Bore Gate Valve (PN16 Flanged)

Brand: Albion Valves
SKU: 31ART335

£84.72 – £798.43 ex. VAT

About this product

Albion Art335 Bronze Gate Valve

The Albion Art335 is a full bore gate valve featuring a durable bronze CC491K body and brass CW617N bonnet. Designed for robust flow isolation, it?s fitted with PN16 flanged ends to BS EN 1092-1 and operates via a manual handwheel. This valve is CE marked and manufactured in accordance with BS 5154 and BS EN 12288 standards.

Internally, it includes a brass CW617N stem and wedge, with larger sizes (DN125 & DN150;) using a CC491K bronze wedge for improved durability. It is suitable for saturated steam service and offers dependable performance across a wide temperature and pressure range.

Key Features:

  • Bronze CC491K body with brass CW617N bonnet
  • Full bore design for minimal flow restriction
  • Brass stem and wedge (DN125 & DN150 feature a bronze wedge)
  • PN16 flanged ends to BS EN 1092-1
  • Manual handwheel operation
  • Manufactured to BS 5154 & BS EN 12288
  • CE Marked & suitable for saturated steam
  • Pressure rated to 16 bar (DN15 – DN100) or 10 bar (DN125 & DN150) at up to 100°C
  • Temperature range: -10°C to 170°C (DN15 – DN100) or -10°C to 150°C (DN125 & DN150)

Ideal for fluid isolation in commercial, industrial, and steam-based systems requiring a resilient and reliable valve solution.

Datasheet download

Specification

Weight N/A
Dimensions N/A
Brand

Valve Type

Full Bore Gate Valve
Connections

PN16 Flanged – BS EN 1092-1
Manufacturing Standard

Conforms to BS 5154 & BS EN 12288
Operation

Manual Handwheel Operated
Body Material

Bronze CC491K
Stem Material

Brass CW617N
Wedge Material

Brass CW617N (DN15 – DN100). Bronze CC491K (DN125 – DN150)
Body Gasket Material

NA 1030 Gr
Maximum Operating Pressure

16 bar (DN15 – DN100). 10 bar (DN125 – DN150)
Operating Temperature Range

-10°C – 170°C (DN15 – DN100). -10°C – 150°C (DN125 – DN150)
Approvals

CE Marked (Quality). WRAS Approved (Potable water).
Additional Information

Image shows undrilled flanges. Valve will be supplied with PN16 drillings.
Certification Availability

2.1 Letter of Conformity Only – Must be requested at time of order
