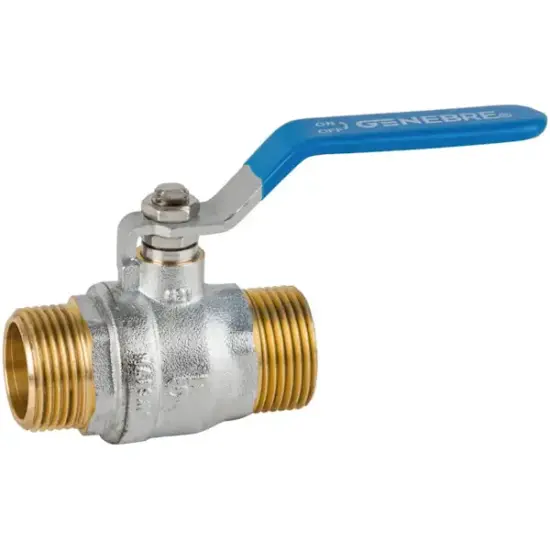

Genebre Art3033 Full Bore Brass Ball Valve (BSP Male Threaded)

Genebre Art3033 Full Bore Brass Ball Valve with Male/Male BSP Threads

The Genebre Art3033 is a robust 2-piece brass ball valve designed for reliable performance in industrial and commercial systems. This full bore valve is constructed from chrome-plated CW617N brass.

Supplied with male BSPP parallel threads to ISO 228/1, the Art3033 is manually operated as standard via a steel lever handle. It includes a chrome-plated brass ball, PTFE ball seats, and a blow-out proof stem with PTFE and NBR O-ring sealing, offering long-term durability under demanding conditions.

Key Features:

• Sizes: 1/2″ to 1″ nominal bore
• 2-piece, full bore brass body (CW617N) with chrome plating
• Male BSPP threaded ends to ISO 228/1
• Chrome-plated brass ball with PTFE seats
• Blow-out proof stem with PTFE & NBR seals
• Manual lever operation
• Pressure rating: 25 bar at up to 80°C
• Temperature range: -10°C to 110°C
