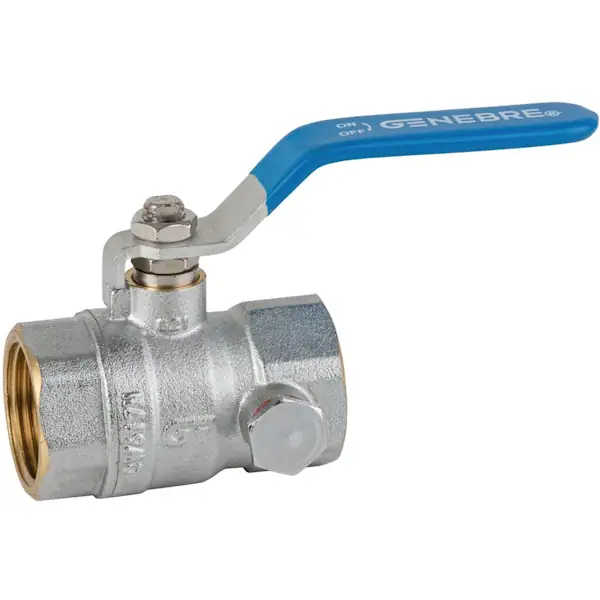

Genebre Art3032 Full Bore Side Inlet Brass Ball Valve (PN25)

Genebre Art3032 Brass Ball Valve with Side Inlets

The Genebre Art3032 is a full bore brass ball valve with two integrated side inlets, offering added versatility for auxiliary connections such as gauges, drains, or injection points. Manufactured from CW617N brass with a durable chrome-plated finish, this 2-piece valve is available in sizes from 1/2″ to 1″ nominal bore.

It features BSPP parallel threaded ends to ISO 228/1, a chrome-plated brass ball with PTFE seats, and a blow-out proof stem with PTFE packing and an NBR O-ring. One of the two 1/4″ BSP side inlets is supplied with a factory-fitted plug. The valve is operated manually via a steel lever handle.

Key Features:

• Sizes: 1/2″ to 1″ nominal bore
• 2-piece full bore CW617N brass body
• Female BSPP threaded ends to ISO 228/1
• Two 1/4″ BSP female side inlets (one plug included)
• Chrome-plated brass ball with PTFE seats
• Chrome-plated brass stem with PTFE packing & NBR O-ring
• Manual lever handle operation
• Pressure rating: 25 bar at up to 80°C
• Operating temperature range: -20°C to 110°C
