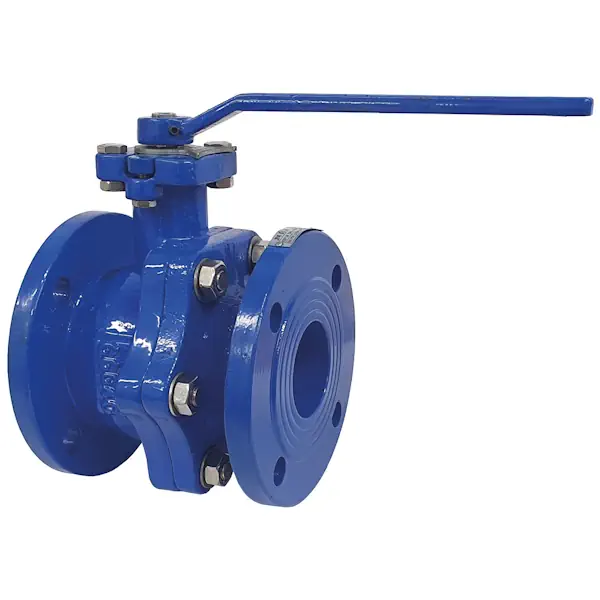

Albion Art280 PN16 Flanged Ductile Iron Ball Valve
The Albion Art280 is a durable full-bore ball valve designed for robust industrial use. It features a 2-piece ductile iron body with an epoxy coating and a PTFE body gasket for long-lasting corrosion resistance and tight sealing. This valve is manually operated via a lever and includes an ISO 5211 direct mount bracket for easy actuation.
Internally, the valve is equipped with a stainless steel 304 ball and PTFE seats, while the blow-out proof stem is made from stainless steel 410 with PTFE seals. The Art280 has PN16 flanged ends to BS EN 1092-1:2018 and is pressure rated to 16 bar at temperatures up to 150°C, with an operating range from -20°C to 150°C.
Key Features:
- 2-piece ductile iron body with epoxy coating
- Stainless steel 304 ball with PTFE seats
- Stainless steel 410 blow-out proof stem with PTFE seals
- PTFE body gasket
- Manual lever operation
- ISO 5211 direct mount bracket for actuation
- PN16 flanged ends to BS EN 1092-1:2018
- Pressure rated to 16 bar (up to 150°C)
- Operating temperature range: -20°C to 150°C
Ideal for on/off flow control in heating, cooling, and general industrial pipeline applications requiring high performance and compatibility with actuation.
