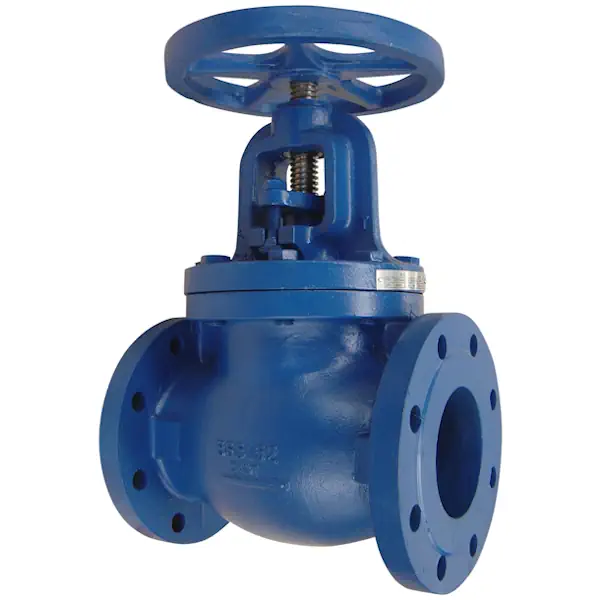

Albion Art260 Cast Iron Globe Valve (PN16 Flanged)

Albion Art260 PN16 Flanged Cast Iron Globe Valve

The Albion Art260 is a robust globe valve designed for reliable flow regulation in industrial systems, particularly those handling saturated steam. It features a cast iron body with a graphite gasket and is manually operated via a handwheel. This valve is ideal for throttling applications where precision and durability are essential.

Available in sizes from 2″ (DN50) to 8″ (DN200), the Art260 has PN16 flanged ends to BS EN 1092-1:2018 and face-to-face dimensions to BS EN 558-1. Internally, it includes a cast iron disc with bronze sealing, a stainless steel 420 stem with graphite packing, and a CE-marked construction. The valve conforms to BS 5152 and BS EN 13789, and is pressure rated to PN16 at up to 120°C, with an operating temperature range of -10°C to 230°C.

Key Features:

• Cast iron body with graphite body gasket
• Cast iron disc with bronze sealing
• Stainless steel 420 stem with graphite packing
• Manual handwheel operated
• PN16 flanged ends to BS EN 1092-1:2018
• Face to face to BS EN 558-1
• Conforms to BS 5152 and BS EN 13789
• CE marked
• Suitable for saturated steam
• Pressure rated to PN16 (up to 120°C)
• Operating temperature range: -10°C to 230°C

Ideal for precise flow control in steam, heating, and general industrial applications where performance and reliability are key.
