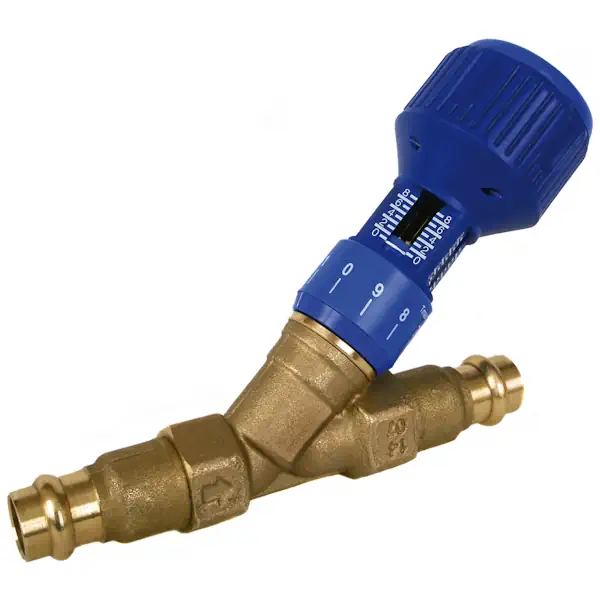

Albion Art26PRS DZR Brass Double Regulating Valve (Press Fit)

Brand:	Albion Valves
SKU:	31ART26PRS

£44.35 – £227.10 ex. VAT

Valve Size

Clear

About this product

Body and bonnet made of DZR (Dezincification resistant) brass

DZR brass cone with an EPDM rubber seat providing a tight shut off

M-Profile press fit ends (Sizes up to 35mm also support V profile)

Fixed orifice provides flow measurement accurate to within -/+ 5%

Position indicator

Non-rising DZR brass stem with nitrile rubber O-rings

Handwheel operated

Comes with a 5 year manufacturers guarantee

Maximum operating pressure: 20 bar (PN20) at up to 100°C

Operating temperature range: -10°C – 120°C

Weight	N/A
Dimensions	N/A
Brand	Albion Valves
Valve Type	Double Regulating Valve
Connections	M-Profile Press Fit (Sizes up to 35mm also V-Profile)
Operation	Manual Handwheel Operated
Body Material	DZR (Dezincification resistant) Brass
Cone	DZR (Dezincification resistant) Brass
Stem Material	DZR (Dezincification resistant) Brass
Cone Seat Material	EPDM
Stem O-Ring Material	NBR
Maximum Operating Pressure	20 bar (35mm – 54mm: 17 bar)
Operating Temperature Range	-10°C – 120°C
Additional Information	Built-in position indicator. Supplied with 2 brass pressure test points and extensions. 5-Year manufacturers guarantee.
Certification Availability	N/A
