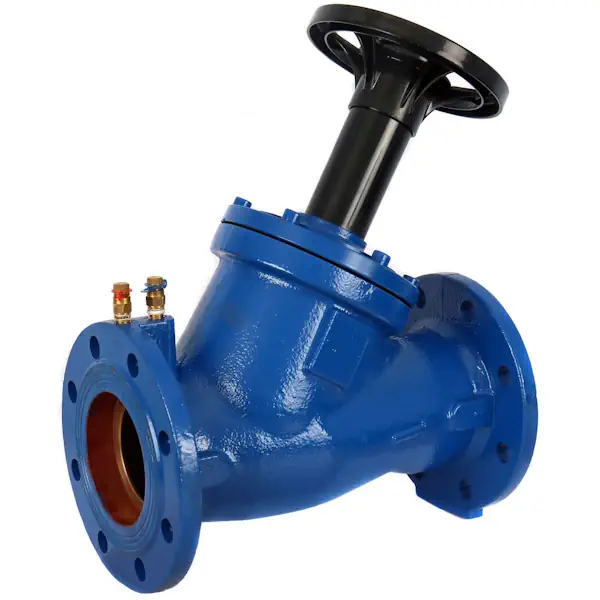

Albion Art255 Ductile Iron Double Regulating Valve (PN16 Flanged)

Brand:	Albion
SKU:	31ART255

£302.03 – £1,064.40 ex. VAT

Valve Size

Clear

About this product

Body made of ductile iron

Cone made of cast iron with EPDM rubber seating to provide a tight shut off

Comes with PN16 flanged ends conforming to BS EN 1092-1:2018

Flange PCD (Pitch circle diameter): See datasheet

Bolt holes: See datasheet

Position indicator

Supplied with 2 fitted brass pressure test points and extensions

Black EPDM rubber O-rings

Stem made of stainless steel 304

Aluminium handwheel operated

Maximum operating pressure: 16 bar (PN16)

Operating temperature range: -20°C – 120°C

Weight	N/A
Dimensions	N/A
Brand	Albion
Valve Type	Double Regulating Valve
Connections	PN16 Flanged – BS EN 1092-1
Manufacturing Standard	Conforms to BS 5152 & BS 7350
Operation	Manual Handwheel Operated
Body Material	Ductile Iron
Disc Material	Cast Iron
Orifice Plate Material	Brass
Stem Material	Stainless Steel 304
Disc Seat Material	EPDM
Stem O-Ring Material	EPDM
Flange Diameter	See datasheet
Flange PCD	See datasheet
Flange Thickness	See datasheet
Flange Bolt Holes	See datasheet
Maximum Operating Pressure	16 bar
Operating Temperature Range	-20°C – 120°C
Additional Information	Built-in position indicator. Supplied with 2 brass pressure test points and extensions.
Certification Availability	2.1 Letter of Conformity Only – Must be requested at time of order
