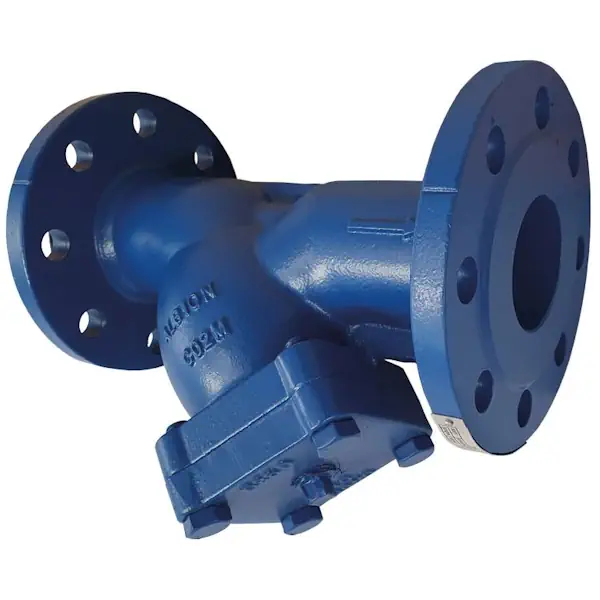

Albion Art187 PN25 Flanged Ductile Iron Y-Strainer

Albion Art187 PN25 Flanged Ductile Iron Y-Strainer

The Albion Art187 is a high-performance Y-pattern strainer designed to protect pipeline components by removing debris and particulates from flow media. Constructed from ductile iron EN-GJS-450 to BS 1563 and sealed with an EPDM gasket, this robust strainer is well-suited for use in high-pressure systems across a range of industrial applications.

It features a stainless steel 304 filter screen with 1.5mm perforations for effective filtration, along with PN25 flanged ends to BS EN 1092-1. The face-to-face dimensions conform to BS EN 558-1 Series 1 standards. With a pressure rating of up to 25 bar and a wide operating temperature range, the Art187 delivers reliable performance in demanding environments.

Key Features:

• Ductile iron EN-GJS-450 body and bonnet to BS 1563
• EPDM body gasket for secure sealing
• Stainless steel 304 screen with 1.5mm perforations
• PN25 flanged ends to BS EN 1092-1
• Face-to-face dimensions conform to BS EN 558-1 Series 1
• Pressure rated to 25 bar (up to 120°C)
• Operating temperature range: -10°C to 230°C

An ideal choice for filtering and protecting valves, pumps, meters, and other downstream equipment in heating, cooling, and general industrial systems.
