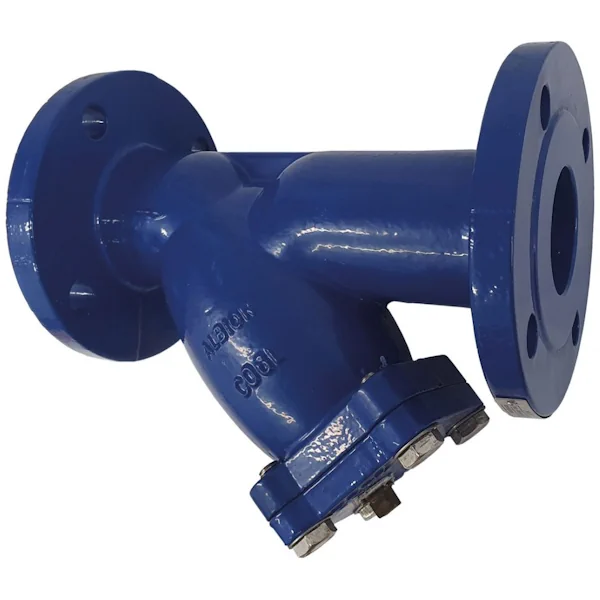

Albion Art183 PN16 Flanged Cast Iron Y-Strainer
The Albion Art183 is a high-performance Y-strainer designed for filtering debris from fluid systems. It features a cast iron EN GJL 250 body with a durable fusion bonded epoxy coating and PN16 flanged ends to BS EN 1092-1. Available in sizes from DN50 (2″) to DN300 (12″), it offers wide compatibility for commercial and industrial installations.
The internal screen is manufactured from stainless steel 304 with 1.5mm perforations, supported by an EPDM body gasket for effective sealing. This valve is WRAS approved, rated for 16 bar pressure, and suitable for use in systems operating from -10°C to +85°C. A drain port is included as standard on all sizes.
Key Features:
- Cast iron EN GJL 250 body with fusion bonded epoxy coating
- PN16 flanged ends to BS EN 1092-1
- Stainless steel 304 screen with 1.5mm perforations
- EPDM body gasket/seal
- WRAS approved for potable water
- Face-to-face dimensions to BS EN 558-1 Series 1
- Drain port fitted on all sizes
- Pressure rated to 16 bar (up to 85°C)
- Operating temperature range: -10°C to 85°C
Ideal for protecting equipment such as pumps, meters, and valves from pipeline debris in potable water and general liquid systems.
