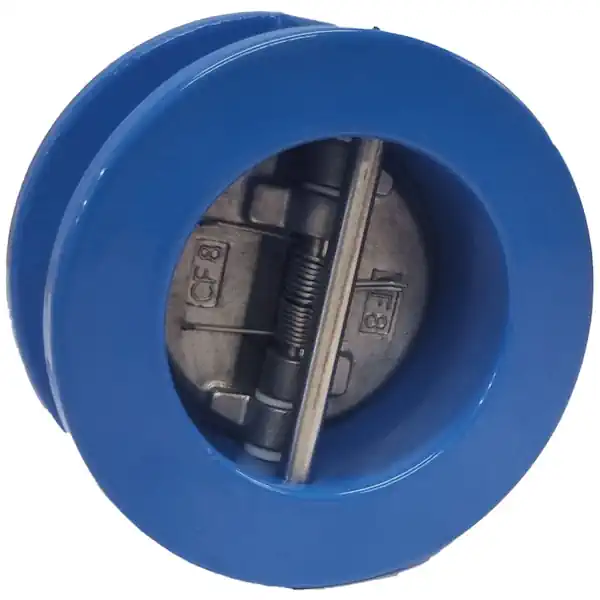

Albion Art136 PN16 Dual Plate Wafer Check Valve
The Albion Art136 is a durable dual plate wafer check valve with a cast iron EN-GJL-250 body to EN 1561, protected by an epoxy coating. It features a compact wafer pattern for installation between PN10/PN16 flanges to BS EN 1092-1, and Class 125 flanges to ASME B16.5.
Internally, the valve is equipped with a stainless steel 316 (CF8M) disc, stainless steel 304 spring, and an EPDM seat for dependable backflow prevention. It is WRAS approved for use with potable water up to 85°C, offers a PN16 pressure rating, and operates within a temperature range of -10°C – 120°C.
Key Features:
- Cast iron EN-GJL-250 body (EN 1561) with epoxy coating
- Dual plate wafer design for compact installation
- 316 stainless steel (CF8M) disc with 304 stainless steel spring
- EPDM seat for reliable sealing
- Fits PN10/PN16 (BS EN 1092-1) and Class 125 (ASME B16.5) flanges
- Pressure rated to PN16
- Operating temperature range: -10°C – 120°C
- WRAS approved for potable water applications up to 85°C
Ideal for backflow prevention in commercial and industrial water systems, HVAC, and general fluid handling applications.
