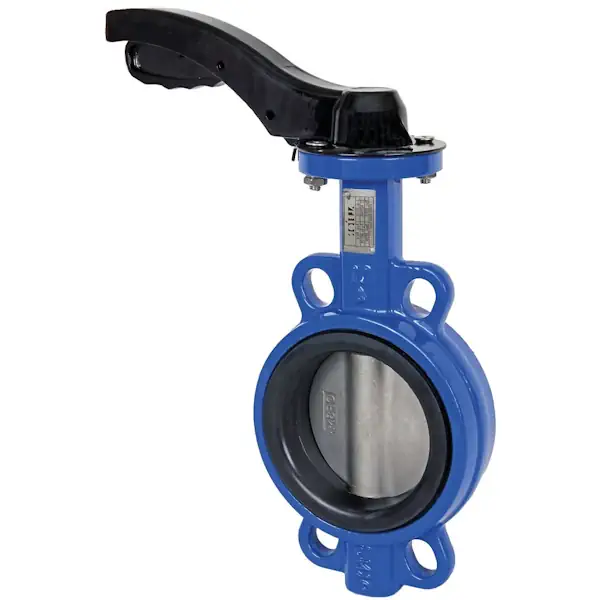

Albion Art125 Ductile Iron Wafer Type Butterfly Valve

Albion Art125 Ductile Iron Wafer Butterfly Valve

The Albion Art125 is a versatile wafer-pattern butterfly valve designed for reliable flow control in commercial and industrial applications. Featuring a robust ductile iron GGG40 body with a corrosion-resistant epoxy coating, this valve is suitable for use between PN10, PN16, or ANSI Class 150 flanges. It conforms to BS EN 593 (formerly BS 5155) standards and is supplied with a built-in ISO 5211 direct mount pad for easy actuation or manual operation via its locking lever.

Available in sizes from 2″ (DN50) to 12″ (DN300), the Art125 is equipped with a stainless steel 316 disc and an EPDM seat for dependable sealing across a wide range of applications. The stainless steel 410 stem includes PTFE packing and EPDM O-rings to ensure long service life. For sizes DN200 and above, gearbox operation is recommended due to increased torque requirements.

Key Features:

• Ductile iron GGG40 body with epoxy coating
• Wafer type ends for PN10, PN16 (BS EN 1092-1) or ANSI Class 150 (B16.5) flanges
• Stainless steel 316 disc and EPDM seat
• Stainless steel 410 stem with PTFE packing and EPDM O-ring
• Manual lever operation with built-in locking handle
• ISO 5211 direct mount pad for actuation
• Conforms to BS EN 593 (previously BS 5155)
• Size DN80 supplied with double lugs
• Recommended gearbox operation for DN200 ? DN300
• 16 bar pressure rated up to 50°C
• Operating temperature range: -10°C to 110°C

This butterfly valve offers a cost-effective and dependable solution for isolation and flow regulation duties in HVAC, water treatment, and general industrial systems.
