Stainless Steel 316 Hexagon Nipple – BSP Threaded

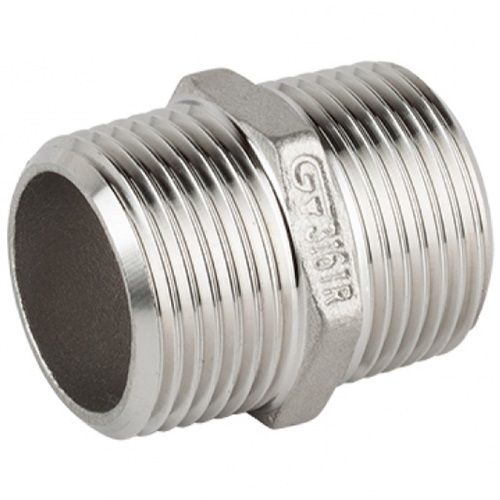

Genebre Art0280 Stainless Steel 316 BSPT Hexagon Nipple

The Genebre Art0280 hexagon nipple is cast from high quality AISI 316 (CF8M) stainless steel, offering excellent corrosion resistance and durability in demanding plumbing, industrial, and process pipework systems. Its hexagonal body allows for easy installation with a spanner, providing a secure connection between two male-threaded pipes.

Featuring male BSPT taper threaded ends manufactured to ISO 7-1 (EN 10226-1) standards, this stainless steel hexagon nipple is compatible with standard BSP threaded systems. With a pressure rating of up to 20 bar, it is suitable for use with water, steam, and industrial fluid systems.

Key Features:

• Cast from corrosion-resistant AISI 316 (CF8M) stainless steel
• Male BSPT taper threaded ends to ISO 7-1 (EN 10226-1)
• Hexagonal body for easy spanner installation
• Maximum operating pressure: 20 bar (PN20) at up to 40°C
• Operating temperature range: -20°C to 220°C
• Suitable for plumbing, industrial pipework, and process systems

What is a Hexagon Nipple?

A hexagon (equal) nipple is a short length of pipe with male threads at both ends and a hexagonal body in the middle for spanner tightening. It is typically used to join two threaded pipe sections securely in a compact installation.

Typical Applications:

• Connecting two male-threaded pipes
• Water and steam distribution systems
• Industrial and process pipe installations
• Chemical and corrosive fluid systems
