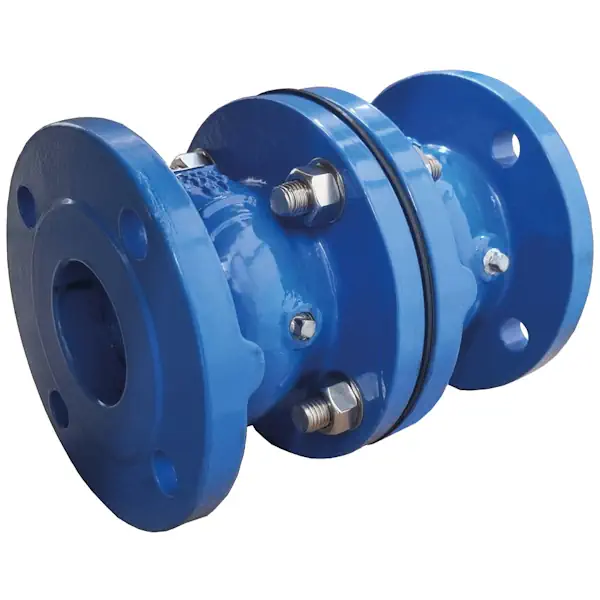

Albion Art237 PN16 Double Spring Check Valve
The Albion Art237 is a WRAS approved double spring check valve designed for potable water systems and a wide range of general-purpose applications. It features an epoxy-coated ductile iron body and discs, sealed with EPDM gaskets and seats to ensure long-lasting, leak-free performance.
With stainless steel 304 springs and stems, the Art237 offers reliable backflow prevention and is capable of operating in any orientation. It has PN16 flanged ends to BS EN 1092-1, is pressure rated to 16 bar at temperatures up to 85°C, and supports a full operating temperature range from -10°C to 85°C.
Key Features:
- Ductile iron body and discs with epoxy coating
- Double spring design for secure backflow prevention
- EPDM gaskets and disc seats for reliable sealing
- Stainless steel 304 springs and stems
- PN16 flanged ends to BS EN 1092-1
- WRAS approved for use with potable water
- Can be installed in any orientation
- Pressure rated to 16 bar at up to 85°C
- Operating temperature range: -10°C to 85°C
Ideal for water supply, treatment, and distribution systems where dependable, orientation-flexible check valve performance is required.
