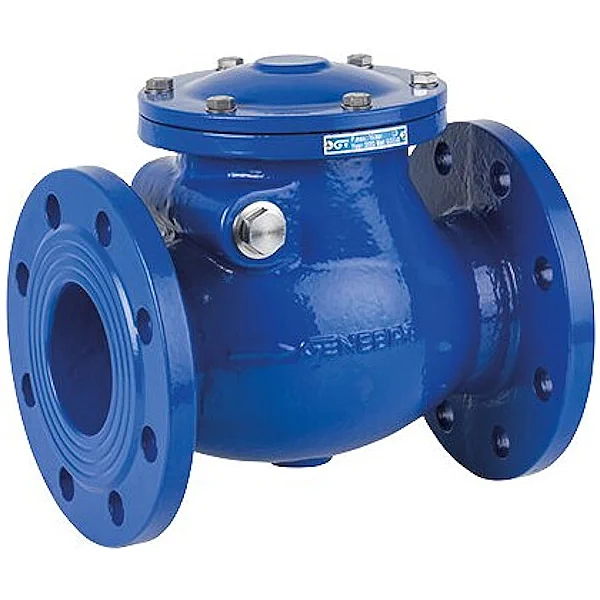

Genebre Art2455 Ductile Iron Swing Check Valve – PN16 Flanged
The Genebre Art2455 is a high-quality swing check valve designed for reliable non-return flow control in a wide range of industrial and commercial applications. Manufactured from robust ductile iron and coated with epoxy for enhanced corrosion resistance, this valve combines durability with dependable performance.
Key Features:
- Size Range: Available in sizes 2″ (DN50) up to 12″ (DN300)
- Body Material: Ductile Iron EN GJS 400 with protective epoxy coating
- Disc & Seat: Ductile iron disc with EPDM sealing and bronze seat for enhanced sealing and longevity
- Connection: PN16 flanged ends to BS EN 1092-1:2018 standard
- Pressure Rating: PN16 rated up to 50°C
- Temperature Range: Suitable for operating temperatures between -10°C – 120°C
- Design: Full-bore design for minimal pressure drop and efficient flow
Ideal for use in water, HVAC, and general industrial systems where backflow prevention is essential. The Art. 2455 swing check valve ensures reliable operation with minimal maintenance.
