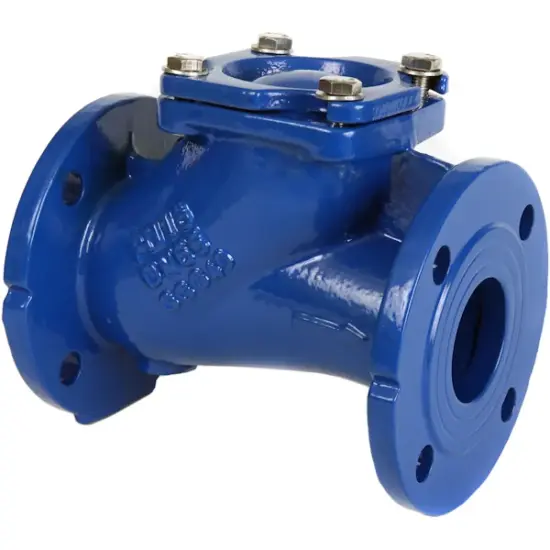

Albion Art172 PN16 Flanged Ductile Iron Ball Check Valve
The Albion Art172 is a robust ball check valve with a ductile iron body, finished with a protective epoxy coating. It features PN16 flanged ends conforming to BS EN 1092-1, making it suitable for a wide range of flanged pipeline systems.
Internally, the valve uses an NBR coated metal ball and NBR body gasket to provide reliable, low-maintenance backflow prevention. It is pressure rated to 16 bar, and suitable for use in systems operating between -10°C and 80°C.
Key Features:
- Ductile iron body with epoxy coating
- PN16 (BS EN 1092-1) Flanged Connections
- NBR coated metal ball and NBR body gasket
- Ball check design for dependable non-return function
- Face to face dimensions confom to DIN 3202
- Pressure rated to 16 bar
- Operating temperature range: -10°C – 80°C
Ideal for wastewater, drainage, and general liquid handling applications where flanged non-return valves are required.
