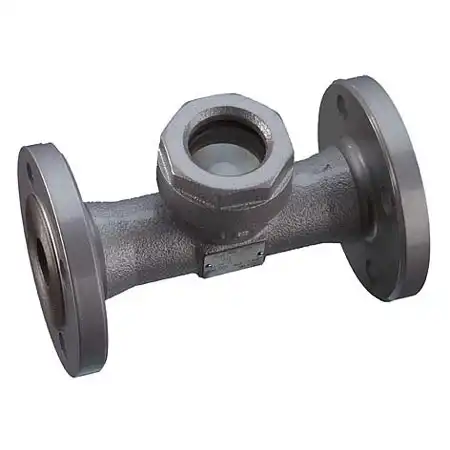

TLV TF8N Cast Iron Sight Glass (PN16 Flanged)

Brand: TLV
SKU: 76TF8N

£207.48£319.28 ex. VAT

About this product

TLV TF8N Cast Iron Sight Glass (PN16 Flanged)

Body made of cast iron A126 (FC250)

PN16 Flanged ends to DIN 2501 (BS EN 1092-1)

Clear viewing through self-polishing, heat-resistant tempered glass

Can be used to monitor performance of steam traps and other equipment, check line flow and detect steam leakage

PTFE ball moves to indicate flow status

PTFE (fluorine resin) seal for easy maintenance

Lightweight and compact design, can be cleaned, maintained and repaired inline

Suitable for use with steam, air, water and more

Maximum flow rate: Up to 3500 kg/h (9000 kg/h for room temperature water)

Maximum operating pressure: 16 bar

Maximum operating temperature: 220°C

Specification

Weight N/A
Dimensions N/A
Brand

Valve Type

Sight Glass

Connections

PN16 Flanged (BS EN 1092-1)

Body Material

Cast Iron FC250

Ball Material

Fluorine Resin PTFE

Window Material

Tempered Glass (Heat Resistant)

Body Gasket Material

Fluorine Resin PTFE

Maximum Operating Pressure

16 bar

Operating Temperature Range

0°C – 220°C

Certification Availability

Contact Us (Chargeable, may increase delivery time.)
