Galvanised Malleable Iron Male/Female 45 Degree Elbow

Brand: Jinan Meide
SKU: 2203

£2.51£11.79 ex. VAT

About this product

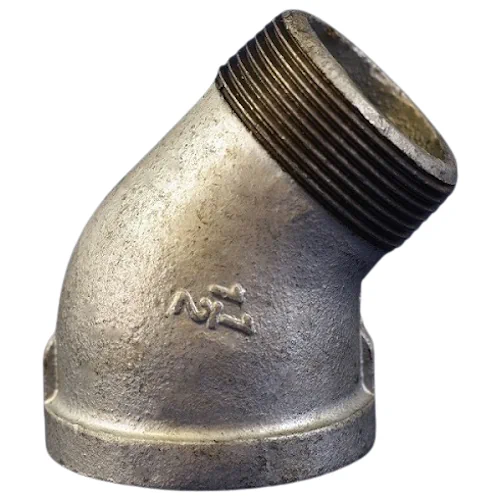

Jinan Meide Galvanised Malleable Iron Male/Female 45 Degree Street Elbow

Pipe fitting cast in HDG galvanised malleable iron

Male/female BSPT taper threaded ends to ISO 7-1

Manufactured to the BS EN 10242:1995 by Jinan Meide

BSI Kitemarked

For installation with BS EN 10255 steel pipe & tube

Suitable for non-potable water, compressed air, natural gas, unleaded fuel and more

Maximum operating pressure: 25 bar (PN25) at up to 120°C

Maximum operating temperature: 300°C at up to 20 bar (PN20)

Operating temperature range: -20°C – 300°C

Specification

Weight N/A
Brand

Connections

Male BSPT Taper x Female BSPT Taper Threaded (ISO 7-1)

Manufacturing Standard

BS EN 10242

Body Material

HDG Galvanised Malleable Cast Iron

Maximum Operating Pressure

25 bar

Operating Temperature Range

-20°C – 300°C

Approvals

BSI Kitemarked

Certification Availability

2.1 Letter of Conformity Only – Must be requested at time of order
