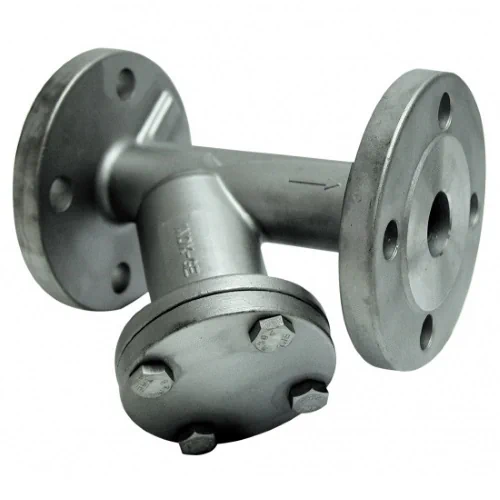

Genebre Art2461 Stainless Steel Y-Strainer (PN16 Flanged)

Genebre Art2461 Stainless Steel Y-Strainer (PN16 Flanged)

Brand: Genebre
SKU: 51ART2461

Price range: £66.94 through £2,236.34 ex. VAT

About this product

Genebre Art2461 Stainless Steel Y-Strainer (PN16 Flanged)

Valve body and end cover made of shot blasted stainless steel CF8M (1.4408)

Comes with PN16 flanged ends conforming to the BS EN 1092-1:2018 standard

Body and end cover secured with stainless steel 304 bolts, sealed with a PTFE body gasket

Mesh filter made of stainless steel 316

  • Mesh perforation size:
    • Maximum 1mm perforations (size 2″)
    • Maximum 2mm perforations (sizes 2 1/2″ – 8″)

    • Face to face flange dimensions conform to BS EN 558-1 (DIN 3202 F1)

    Maximum operating pressure: 16 bar (PN16) at up to 180°C

    Operating temperature range: -30°C – 240°C

    Datasheet download

    Specification

    Weight N/A
    Dimensions N/A
    Brand

    Valve Type

    Y-Strainer
    Connections

    PN16 Flanged Ends – BS EN 1092-1:2018
    Body Material

    Stainless Steel 1.4408 (Shot Blasted)
    Screen Material

    Stainless Steel 316
    Body Gasket Material

    PTFE
    Flange Diameter

    See datasheet
    Flange PCD

    See datasheet
    Flange Bolt Holes

    See datasheet
    Maximum Operating Pressure

    16 bar
    Operating Temperature Range

    -30°C – 240°C
    Additional Information

    Dimensions to BS EN 558 series 1 (DIN 3202 F1).
    Certification Availability

    N/A
