Stainless Steel 316 90° Elbow – BSP Threaded

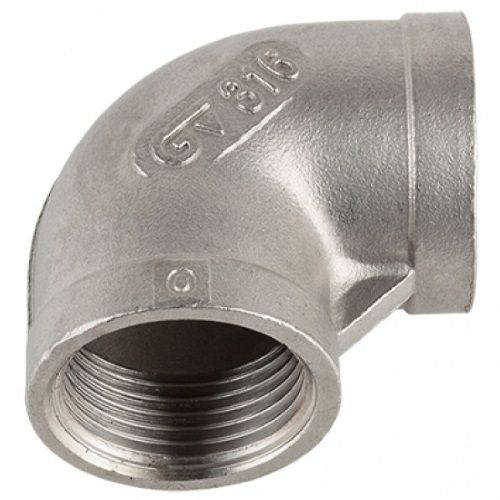

Genebre Art0090 Stainless Steel 316 Female 90° Elbow BSPP

The Genebre Art0090 90 degree elbow is cast from high quality AISI 316 (CF8M) stainless steel, offering excellent corrosion resistance and durability in plumbing, industrial, and process pipework systems. Its compact design allows for a smooth change of direction between two female-threaded pipes while maintaining a secure, leak-tight connection.

Featuring female BSPP parallel threaded ends manufactured to ISO 7-1 (EN 10226-1) standards and conforming to ISO 4144:2003, this stainless steel elbow is suitable for water, steam, and a variety of industrial fluids. Wall thickness is 1.5mm, with a maximum operating pressure of 20 bar (PN20) at up to 40°C and an operating temperature range of -20°C to 220°C.

Key Features:

• Cast from corrosion-resistant AISI 316 (CF8M) stainless steel
• Female BSPP parallel threaded ends to ISO 7-1 (EN 10226-1)
• Compact 90° design for smooth directional change
• Wall thickness: 1.5mm
• Manufactured in accordance with ISO 4144:2003
• Maximum operating pressure: 20 bar (PN20) at up to 40°C
• Operating temperature range: -20°C to 220°C
• Suitable for plumbing, industrial pipework, and process systems
