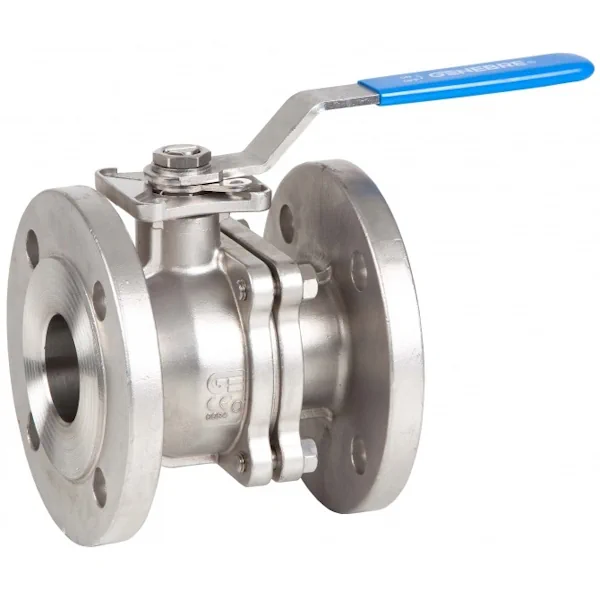

Genebre Art2528 Full Bore Stainless Steel Ball Valve (PN16/40 Flanged)
| Brand: | Genebre |
|---|---|
| SKU: | 51ART2528 |
£53.56 – £3,838.63 ex. VAT
About this product
Genebre Art2528 Full Bore 2-Piece Stainless Steel Ball Valve (PN40 Flanged)
Manual lever operated 2-piece ball valve with a full interior bore
2-Piece body design, valve body and cap made of shot blasted stainless steel 1.4408 (CF8M), sealed with a PTFE body gasket
PN16/40 Flanged ends conforming to BS EN 1092-1:2018
Polished stainless steel 1.4408 (CF8M) ball with PTFE & graphite ball seats/seals
Blow-out proof stem made of stainless steel 316 with PTFE stem packing and an FKM rubber O-ring
Face to face flange dimensions conforming to BS EN 558 (series 27)
Flange diameter: See datasheet
Flange pitch circle diameter (PCD): See datasheet
Bolt holes: See datasheet
ISO 5211 direct mount for actuator installation
Valve torque at zero pressure: See datasheet
Built-in stainless steel 304 locking lever with a vinyl sleeve
Fire-safe design with an anti-static device, required for use with flammable fluids
Maximum operating pressures
- 1/2″ – 2″: 40 bar (PN40) at up to 100°C
- 2 1/2″ – 4″: 16 bar (PN16) at up to 150°C
- 5″ – 8″: 16 bar (PN16) at up to 75°C
Operating temperature range: -30°C – 180°C
Specification
| Weight | N/A |
|---|---|
| Dimensions | N/A |
| Brand | |
| Valve Type | 2-Piece Full Bore Ball Valve |
| Connections | PN40 (Up to 2") or PN16 (2 1/2" & Above) Flanged Ends – BS EN 1092-1:2018 |
| Operation | Manual Lever Handle Operated |
| Body Material | Stainless Steel 1.4408 (Shot Blasted) |
| Ball Material | Stainless Steel 1.4308 (Polished) |
| Stem Material | Stainless Steel 316 |
| Body Gasket Material | PTFE |
| Ball Seat Material | PTFE + 15% Graphite |
| Stem Packing Material | PTFE |
| ISO 5211 Direct Mount Size | See Datasheet |
| Flange Diameter | See datasheet |
| Flange PCD | See datasheet |
| Flange Bolt Holes | See datasheet |
| Maximum Operating Pressure | 40 bar (Up to 2"). 16 bar (2 1/2" & Above) |
| Operating Temperature Range | -30°C – 180°C |
| Additional Information | Dimensions to BS EN 558 series 27. Blow-out proof stem. Anti-static device. Fire-safe design. |
| Certification Availability | N/A |
